Sysform Electric Automatic Paper Drill D-50A
Sysform Electric Auto Paper Drill
- Drilling Capacity : 50mm / 1.97″
- Max Paper Width : 350mm / 13.78″
- Min Paper Width : 130mm / 5.12″
- Drill Margin : 25mm / 1″
- Dimensions : 530W x 480D x 480Hmm
- Net Weight : 36Kg
- Note : The machine comes with one 6mm drill bit, other sizes have to be purchased as extra.

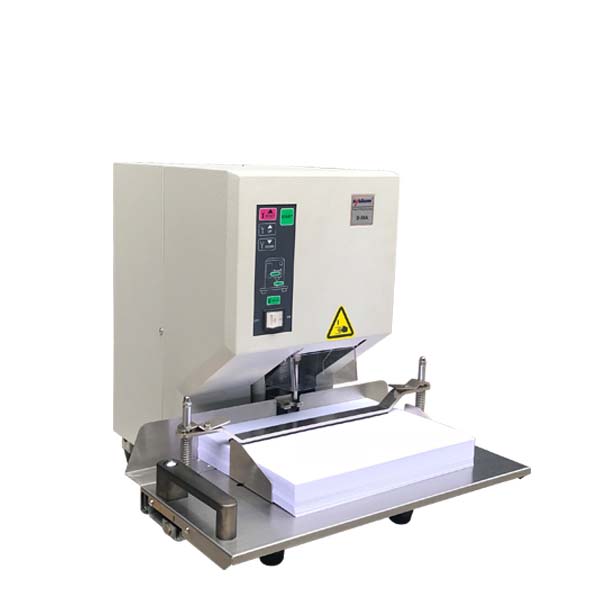

Sysform Electric Automatic Paper Drill D-50A
D-50A Auto Paper Drill
Automatic single hole paper drilling, one touch operation, equipped with programmed bar for drilling options, with safety guard for safe operation, with auto paper centering side gauge, adjustable drilling margin from 4mm – 25mm.
Features
Automatic paper drilling
Programmed bar for drilling option
Safety guard for safe operation
Equipped with auto paper centering side gauge

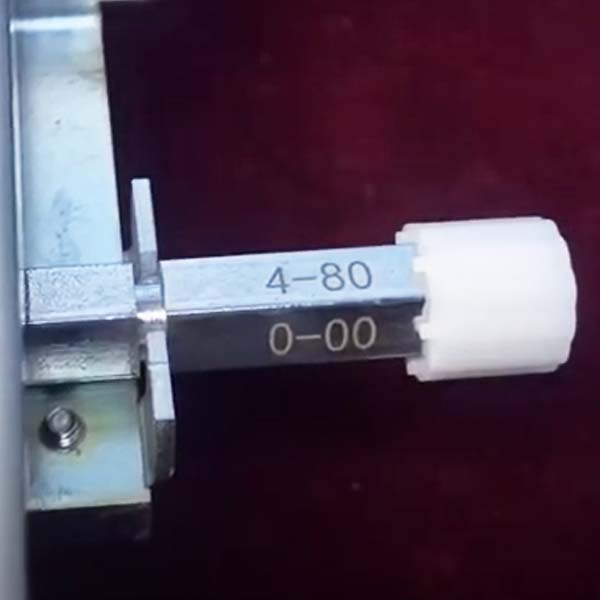

Adjustable drilling margin from 4mm – 25mm
One touch operation
Drill bit: 3mm – 8mm
Simple moving table for drilling
Consumables :
Drill bit (3mm ~ 8mm)
Cutting pad
